Created with Pixso. 2UUL DA05 Heating & Pressurizing Station for Phone Repair

2UUL DA05 Heating & Pressurizing Station for Phone Repair

Brand Name: 2UUL
Model Number: DA05
MOQ: 10pcs
Price: $55
Delivery Time: 5-8work days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Supply Ability:
100000 per mouth
Product Description

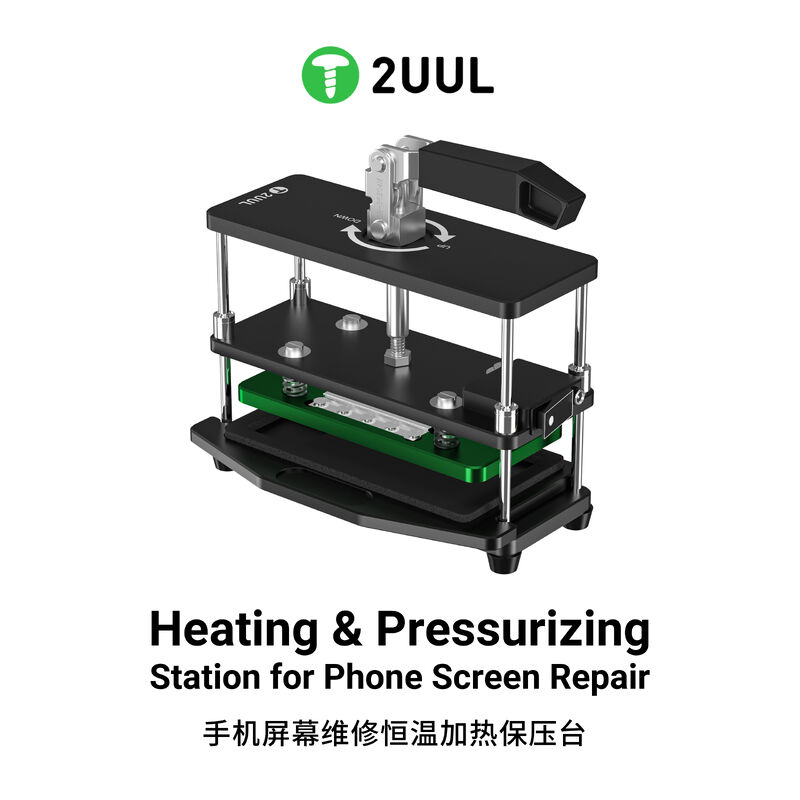

After a screen refurb, the bond needs steady heat and steady pressure — not a stack of weights and a prayer. The 2UUL DA05 Heat Press Station combines a constant-temperature heating plate with an industrial toggle clamp and a four-post uniform-force frame, so frames, back covers and fully assembled phones press flat and stay flat while the adhesive cures.

2UUL DA05 Heating & Pressurizing Station for Phone Repair

2UUL DA05 Heating & Pressurizing Station for Phone Repair

2UUL DA05 Heating & Pressurizing Station for Phone Repair

2UUL DA05 Heating & Pressurizing Station for Phone Repair

2UUL DA05 Heating & Pressurizing Station for Phone Repair

  • Heating + pressurizing in one station — a heated green plate works with a spring-loaded press head, so the phone is heated and held at the same time
  • Uniform force across the frame — four polished guide posts plus a center pressure screw distribute load evenly, so one corner never lifts mid-cure.
  • Camera avoidance design — the bottom pad is cut out around the camera bump, so pressure never lands on the lenses.
  • Push-pull sliding panel — the lower tray slides out and back, so you load and unload the phone without reaching under a press
  • Fine-tuning rotation — the toggle clamp rotates for fine height adjustment as the center screw rises and falls .
  • Four official working modes — supporting frame hot pressing, full-phone hot pressing, back cover hot pressing, and air tightness restoration.
  • Worldwide input voltage — 100–240 V input with 24 V output; one station for benches in any region
  • Solid bench build — 2.48 kg of machine that doesn't wander when you pull the lever.

    2UUL DA05 Heating & Pressurizing Station for Phone Repair

    Item Detail
    Brand 2UUL
    Product Name Heating & Pressurizing Station for Phone Repair
    Model / Code DA05
    Input Voltage 100–240 V
    Output Voltage 24 V
    Product Size 210 × 78 × 205 mm
    Package Size 275 × 165 × 252 mm
    Net Weight 2.48 kg
    Gross Weight 2.8 kg
    Working Modes Supporting frame hot pressing / full-phone hot pressing / back cover hot pressing / air tightness restoration
